Weapon integration

Third party 3D graphic credits : Frank Fischer, Akela Freedom, Denis Galayko

Guns


TypeManufacturerNameStatusPicture
Internal gunNEXTER30M 791B (30 mm gun)In service
Gun round (Exercice)NEXTER30 OX (TP)In service
Gun round
(semi-Penetrating-High-Explosive-Incendiary)
NEXTER30 OSPEI - MR3015 (SAPHEI)In service


Air to Air missiles


TypeManufacturerNameStatusPicture
A2A short range IIRRAFAELPython-5Planned *
A2A Short/Medium range EMMBDAMICA EMIn service
A2A Short/Medium range IIRMBDAMICA IRIn service
A2A short/Medium rangeMBDAMICA EM NGIn development
A2A Short/Medium range IIRMBDAMICA IR NGIn development
A2A Medium range DRDOASTRA Mk2 Planned *
A2A long range EMMBDAMETEORIn service
* India (not confirmed)

Air to Ground missiles


TypeManufacturerName / specsStatusPicture
250 Kg medium range subsonic AGMSAGEM
  • SBU-38 HAMMER (INS/GPS)
  • SBU-64 HAMMER (INS/GPS/IIR)
  • SBU-54 HAMMER (INS/GPS/Laser)
In service
250 Kg Extented Range subsonic AGMSAGEM
  • SBU-xx HAMMER XLR (INS/GPS)
  • SBU-xx HAMMER XLR (INS/GPS/IIR)
  • SBU-xx HAMMER XLR(INS/GPS/Laser)
Planned
1000 Kg medium range subsonic AGMSAGEM
  • SBU-21 HAMMER (INS/GPS)
  • SBU-66 HAMMER (INS/GPS/IIR)
  • SBU-56 HAMMER (INS/GPS/Laser)
In service
A2G INS/GPS/Laser medium range subsonic AGMMBDASmartCruiser LightPlanned
Long range subsonic cruise AGMMBDASCALP-EGIn service
Long range supersonic nuclear AGMMBDAASMPA / ASMPA-RIn service

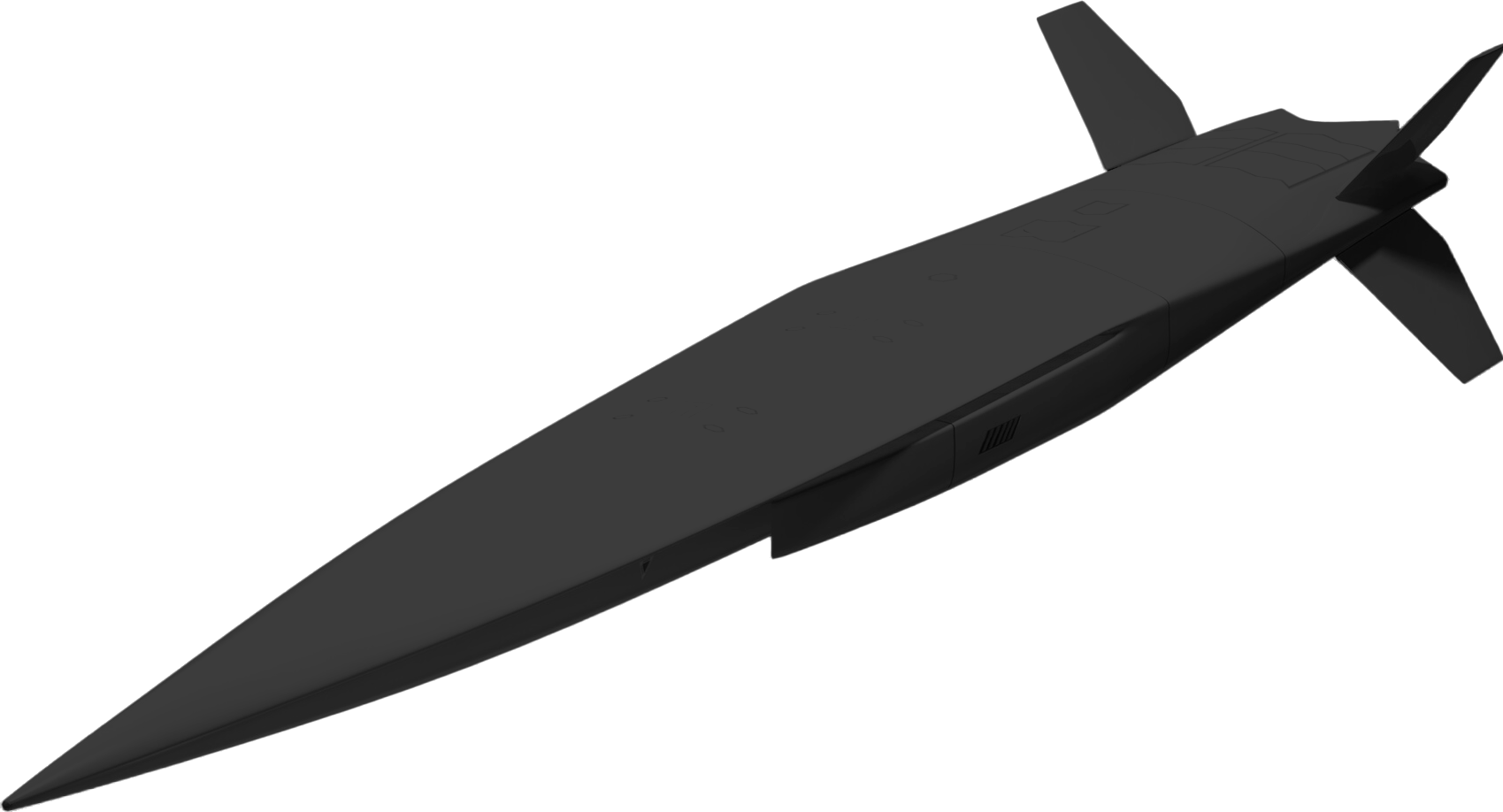

Long range hypersonic nuclear AGM MBDA ASN4G Planned***
Long range supersonic Anti Radar AGM MBDA RJ-10 Anti Radar Planned***
Long range supersonic Anti Ship AGM MBDA RJ-10 Anti Ship Planned***
Medium range anti Ship AGMMBDAAM-39 block II Mod 2 ExocetIn service
Long range anti ship AGMDRDOBrahmos-NGPlanned *
INS/GPS//IIR//SAL medium range subsonic AGMDENEL / EDGEAl Tariq S 250 KGPlanned **
INS/GPS//IIR//SAL long range subsonic AGMDENEL / EDGEAl Tariq ER 250 KGPlanned **
* India (not confirmed)
** UAE (not confirmed)
*** France (Rafale F5)

Laser Guided bombs (LGB)


TypeManufacturerNameStatusPicture
A2G exercice LGBRAYTHEONLGTR PAVEWAY IIIn service
Short range 250 Kg LGBRAYTHEONGBU-12 PAVEWAY IIIn service
Short range 250 Kg LGBRAYTHEONGBU-22/B PAVEWAY IIIIn service
Short range 250 Kg GPS LGBRAYTHEONGBU-49/B PAVEWAY II WiPAKPending
Short range 500 Kg LGBRAYTHEONGBU-16 PAVEWAY IIIn service
Short range 1000 Kg LGBRAYTHEONGBU-10/B PAVEWAY IIPlanned
Short range 1000 Kg LGBRAYTHEONGBU-10 A/B PAVEWAY IIPlanned
Short range 1000 Kg LGBRAYTHEONGBU-24/B PAVEWAY IIIIn service
Short range 1000 Kg LGBRAYTHEONGBU-24 A/B PAVEWAY IIIIn service
A2G INS/GPS/Laser Extended Range GBMBDASmartGlider LightPlanned***
INS/GPS/IIR medium range GBRAFAELSpice-250Planned *
INS/GPS/IIR medium range GBRAFAELSpice-1000Planned *
INS/GPS/IIR medium range GBRAFAELSpice-2000Planned *
Short range 240 Kg INS/GPS/SAL LGBDENEL / EDGETHUNDER P-32 240 KGPlanned **
* India (not confirmed)
** UAE (not confirmed)

Free fall bombs


TypeManufacturerNameStatusPicture
Low drag general purpose 250 Kg BombGeneral DynamicsMK-82In service
Low drag general purpose 500 Kg BombGeneral DynamicsMK-83Planned
Low drag general purpose 1000 Kg BombGeneral DynamicsMK-84Planned


Targeting and recce pods


TypeManufacturerNameStatusPicture
A2G reconnaissanceTHALESAREOS Reco-NGIn service
IIR/VIS Laser Designation and recce podTHALESPod TRPlanned***
IIR Laser Designation podTHALESDamocles MPIn service
IIR/VIS Laser Designation podTHALESTALIOSIn service
IIR/VIS Laser Designation podLockheed-MartinAN/AAQ-33 Sniper ATPIn service **
IIR/VIS Laser Designation podRAFAELAN/AAQ-28 Litening 4In development *
* India
** Qatar
*** France (Rafale F5)

Electronic Warfare pods


TypeManufacturerNameStatusPicture

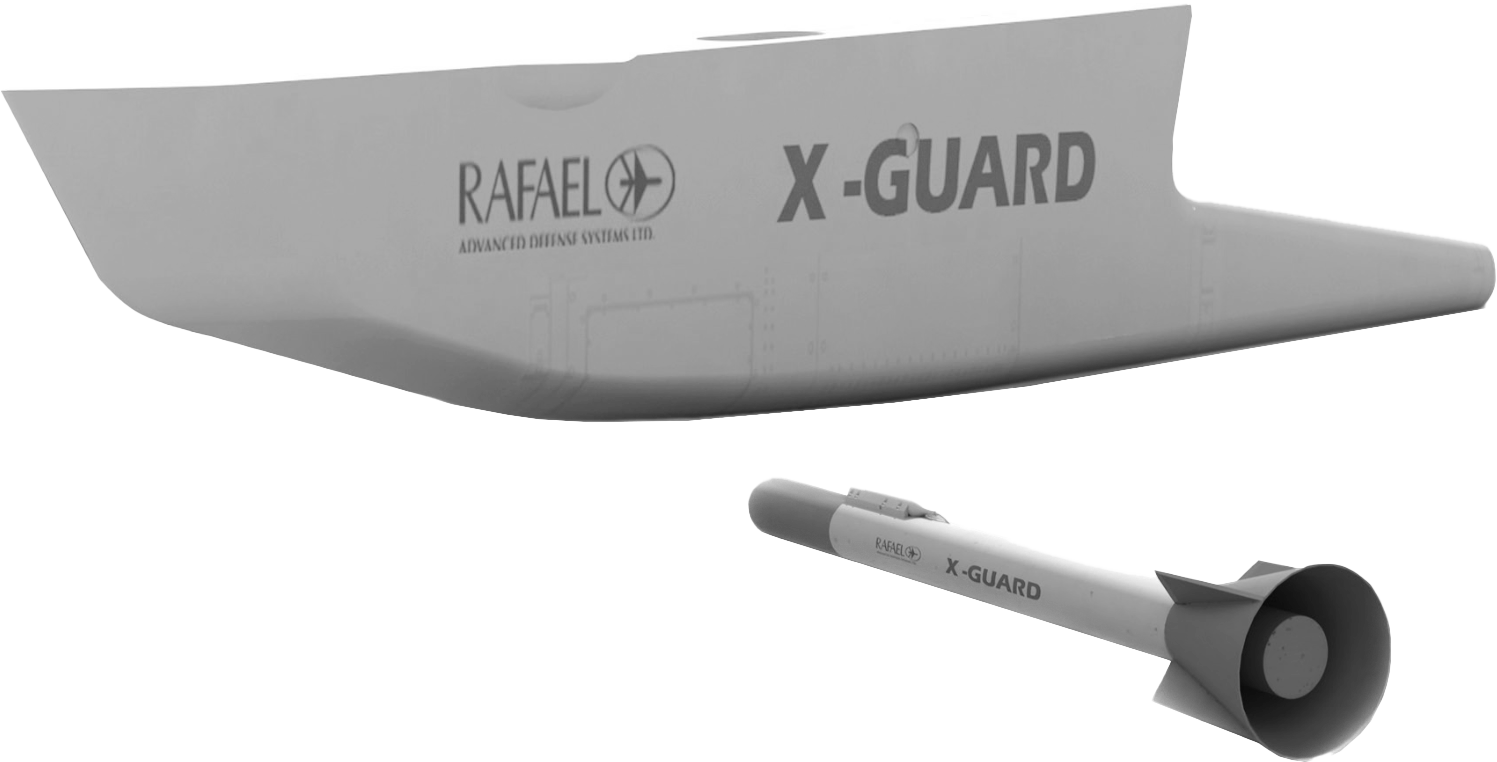

EW towed decoy RAFAELX-GARDIn development *
EW JammerTHALESESJ (Electronic Support Jammer)Planned***
* India
*** France (Rafale F5)

Fuel tanks and refueling pods


TypeManufacturerNameStatusPicture
External fuel tankARESIARPL-701/711 (1250 L / 330 US Gal)In service
External fuel tankARESIARPL-741/751 (2000 L / 528 US Gal)In service
A2A buddy-buddy refuelingDouglas-IntertechniqueD827In service
A2A buddy-buddy refuelingSAFRANNARANGIn service
